        Your present location:Home >> Products >> Related Products >> Stone crusher >> SYMONS CONE CRUSHER CS75 (3 FT )

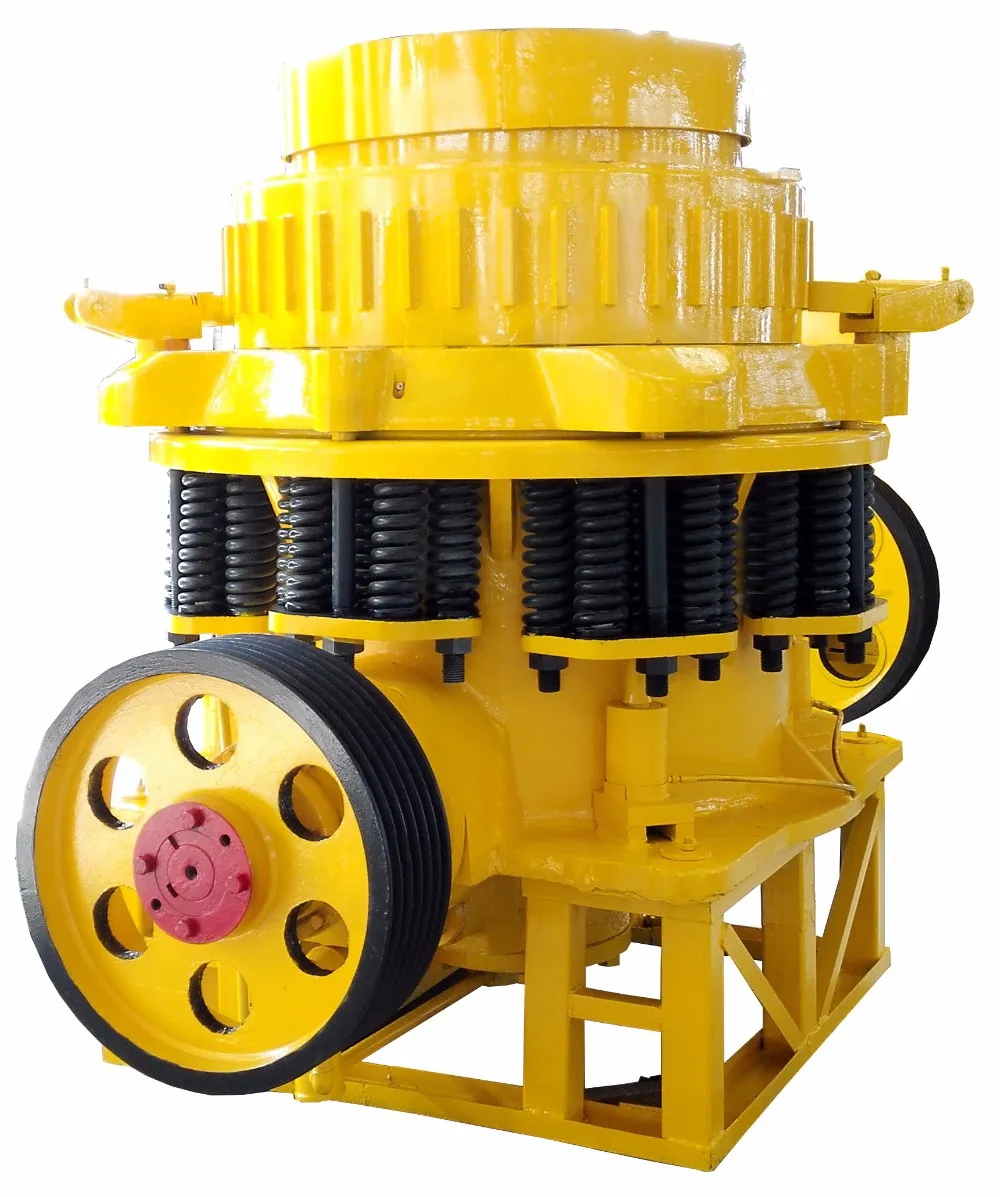

        • Name: SYMONS CONE CRUSHER CS75 (3 FT )
        • NO: LY-CS75160351208
        • Date: 2017-04-22
        • Views : 780

        energy-saving crusher cone collects mechanical, hydraulic, electrical, automation, intelligent control technology into one set, and represents the world's most advanced crushing technology. energy-saving crusher cone has a number of unmatched advantages compared to traditional crushers, high crushing efficiency, low production costs and easy to maintain and adjust, broken products with excellent grain type, and can be widely used in the medium crushing, fine crushing and super fine crushing operations.



        energy-saving crusher cone  can be widely used in metal and nonmetal ores, cement, sand, metallurgy and other industries, suitable for the crushing various minerals and rocks whose Platt's hardness are less than 16, such as iron ore, nonferrous metal ore, granite, limestone , quartzite, sandstone, pebbles, etc.



        >>Cone crusher working principle:

        When the cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling. The transmission shaft and the conical part of the cone crusher swing under the force from the eccentric bushing, which makes the crushing wall close to the pierced  mortar wall at intervals, Then ,the ores will be impacted, squeezed and bent constantly in the crushing chamber. At last, the whole ore crushing process is finished.

        Crusher Features

        1,Production in accordance with U.S. technical standards,

        2,High capacity,is the corresponding specifications of the cone crusher 1.5-2 times,

        3,Big crushing force can provide large production capacity,

        4,Particle granularity uniformity,high prodcution rate,liner consumption greatly reduced,

        5,Good sealing,reduce the wear of transmission parts and consumption of lubricating oil,

        6,Flexible adjustment ,convenient operation,

        7,WIth two kinds if crushing chamber,fine adaptability,

        8,It adapt hydraulic lock,hydraulic adjustment ,hydraulic cleaning,high degree of automatization,



        Technical Parameter

        Standard Type Main Parameters

         Model Dia

        Cavity

        Feed Opening Size(mm)



        Output Size

        (mm)

        Capacity

        (t/h)

        Power

        (KW)

        Weight

        (t)

        Overall Dimension

        L*W*H

        (mm)

        B 3’



        900



        Fine

        83

        102

        9-22

        45-91

        75

        15

        2821*1880*2164

        Coarse

        159

        175

        13-38

        59-163



        B 41/4’



        1295



        Fine

        109

        137

        13-31

        109-181

        160

        27

        2800*2342*2668

        Medium

        188

        210

        16-38

        132-253

        Coarse

        215

        241

        19-51

        172-349



        B 51/2’



        1676



        Fine

        188

        209

        16-38

        181-327

        220

        55

        3911*2870*3771

        Medium

        213

        241

        22-51

        258-417

        Coarse

        241

        268

        25-64

        299-635





        B 7’



        2134





        Fine

        253

        278

        19-38

        381-726

        315

        110

        4613*3251*4732

        Medium

        303

        334

        25-51

        608-998

        Coarse

        334

        369

        31-64

        789-1270



        Short Head Main Parameters

         Model Dia Cavity Feed Opening Size(mm)

        Output size

        (mm)

        Capacity

        (t/h)

        Power

        (KW)

        Weight

        (t)

        Overall Dimension

        L*W*(mm)

        D3’

        914

        Fine 13 41 3-13 27-90  75   15   2821*1880*2410
        Coarse 33 60 3-16 27-100

        D4 1/4'

        1295

        Fine 29 64 3-16 36-163 160   27   2800*2342*2668
        Medium 54 89 6-16 82-163
        Coarse 70 105 10-25 109-227



        D5 1/2'

        1676

        Fine 35 70 5-13 90-209 220 55 3911*2870*3771
        Medium 54 89 6-19 136-281
        Coarse 98 133 10-25 190-336
        D7' 2134 Fine 51 105 5-16 190-408 315 110 4130*3251*4454
        Medium 95 133 10-19 354-508
        Coarse 127 178 13-25 454-599
